12V 55AH Lead-acid Battery
Description
Package Information
Inquiry

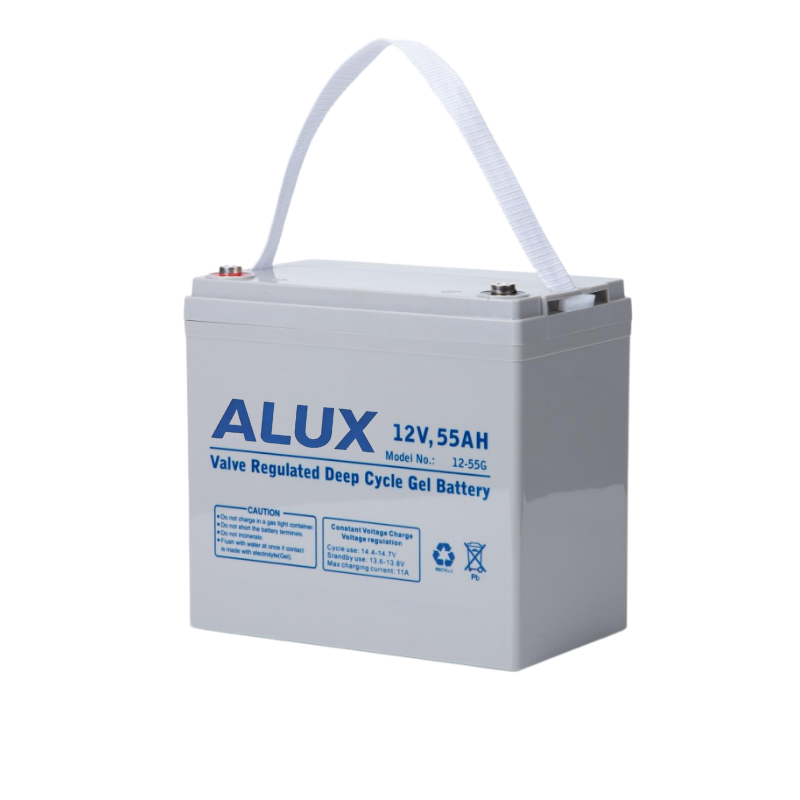

ALUX 12V 55AH Lead-acid Battery Photovoltaic Energy Storage Battery
Product Performance and Advantages
non-spillable& Sealed and Maintenance-free Operation
Safety valve installation for explosion proof
High quality and high reliability
Exceptional deep discharge recovery performance
Low self discharge characteristic
Flexibilitydesign for multiple install positions
Highqualified AGM separator with Pb-Ca alloyplate
Application：
-Electric tools
-Lawn mowers
-Electric toys-Fire alarms
-Wheelchairs
-Power supply
-Uninterrupted power supply
-Golf trolleys and golf cart-Vehicle in place of walking
-Portable power
-Solar systerm-Emergency lights
| Type | Nominal Voltage (V) | Capacity (Ah) | Terminal | Dimension (mm) - Length | Dimension (mm) - Width | Dimension (mm) - Height | Dimension (mm) - Total Height | Weight (Kg/45%) |
| RN12240 | 12 | 24 | L3/T12 | 174 | 166 | 125 | 125 | 7.5 |
| RN12260 | 12 | 26 | L3/T12 | 174 | 166 | 125 | 125 | 7.7 |
| RN12280 | 12 | 28 | L3/T12 | 174 | 166 | 125 | 125 | 8.3 |
| RN12240L | 12 | 24 | L3/T12 | 165 | 126 | 175 | 175 | 7.9 |
| RN12280L | 12 | 28 | L3/T12 | 165 | 126 | 175 | 175 | 8.4 |
| ALRN1230 | 12 | 30 | T12 | 195 | 130 | 161 | 166 | 9.1 |
| ALRN1233 | 12 | 33 | T12 | 195 | 130 | 161 | 166 | 10.3 |
| ALRN1235 | 12 | 35 | T12 | 195 | 130 | 161 | 166 | 10.8 |
| ALRN1238 | 12 | 38 | T12 | 196 | 166 | 175 | 175 | 12.3 |
| ALRN1240 | 12 | 40 | T12 | 196 | 166 | 175 | 175 | 12 |
| ALRN1245 | 12 | 45 | T12 | 196 | 166 | 175 | 175 | 14 |
| ALRN1250 | 12 | 50 | T12 | 230 | 138 | 211 | 216 | 16.1 |
| ALRN1255 | 12 | 55 | T12 | 230 | 138 | 211 | 216 | 16.8 |
| ALRN1260 | 12 | 60 | T12 | 350 | 169 | 179 | 179 | 19 |
| ALRN1265 | 12 | 65 | T12 | 350 | 169 | 179 | 179 | 20.3 |
| ALRN1270 | 12 | 70 | T15 | 260 | 168 | 214 | 219 | 20.2 |
| ALRN1275 | 12 | 75 | T15 | 260 | 168 | 214 | 219 | 21.3 |
| ALRN1280 | 12 | 80 | T15 | 260 | 168 | 214 | 219 | 23 |
| ALRN1285 | 12 | 85 | T15 | 260 | 168 | 211 | 216 | 24.5 |
| ALRN1290 | 12 | 90 | T15 | 307 | 168 | 211 | 216 | 26.5 |
| ALRN1295 | 12 | 95 | T16 | 307 | 168 | 211 | 216 | 27.5 |
| ALRN12100 | 12 | 100 | T16 | 330 | 173 | 217 | 222 | 28.6 |
| ALRN12105 | 12 | 105 | T16 | 330 | 173 | 217 | 222 | 30.5 |
| ALRN12110 | 12 | 110 | T16 | 330 | 173 | 217 | 222 | 31 |
| ALRN12120 | 12 | 120 | T16 | 407 | 177 | 224 | 224 | 34 |
| ALRN12125 | 12 | 125 | T16 | 407 | 177 | 224 | 224 | 35 |
| ALRN12135 | 12 | 135 | T16 | 339 | 172 | 280 | 285 | 39 |
| ALRN12140 | 12 | 140 | T16 | 479 | 170 | 241 | 241 | 40 |
| ALRN12150 | 12 | 150 | T16 | 479 | 170 | 241 | 241 | 42 |
| ALRN12160 | 12 | 160 | T16 | 479 | 170 | 241 | 241 | 45.5 |
| ALRN12180 | 12 | 180 | T16 | 521 | 238 | 217 | 222 | 54 |
| ALRN12200 | 12 | 200 | T16 | 521 | 238 | 217 | 222 | 58 |
| ALRN12220 | 12 | 220 | T16 | 521 | 238 | 217 | 222 | 62 |
| ALRN12230 | 12 | 230 | T16 | 520 | 267 | 220 | 225 | 64 |
| ALRN12250 | 12 | 250 | T16 | 520 | 264 | 220 | 225 | 70 |
| ALRN12280 | 12 | 280 | T16 | 520 | 264 | 220 | 225 | 73.5 |
