Lead Acid Battery Solution

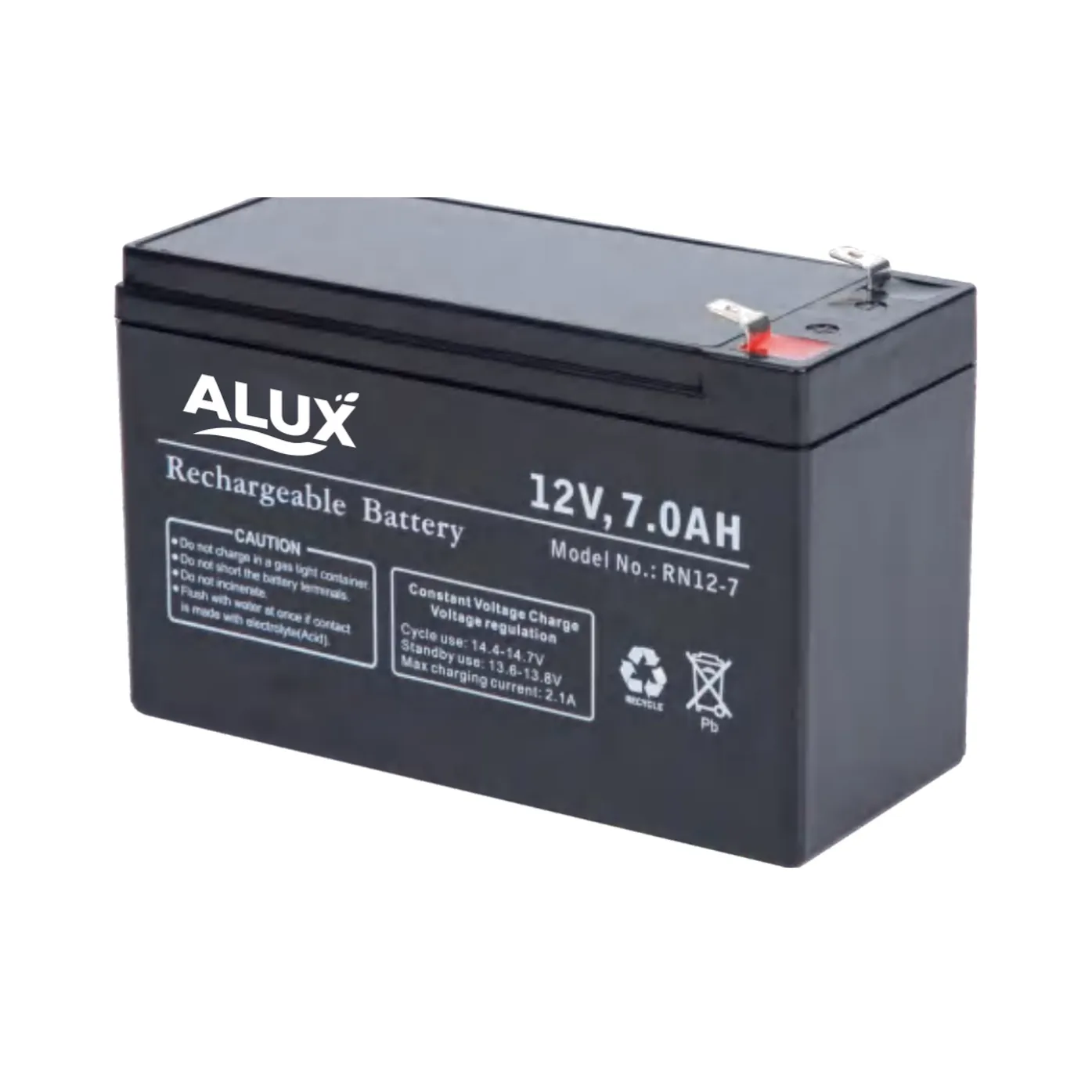

ALUX ALX12-7 12V 7Ah VRLA (AGM) Sealed Lead Acid Battery
ALUX ALX12-7 is a 12V 7Ah VRLA (AGM) sealed lead-acid battery measuring 151 × 65 × 95 mm and weighing 2.03 kg. Non-spillable, maintenance-free and designed for standby and cyclic power applications.
Request a Quote: info@aluxrenewable.com | WhatsApp: +86 183 0594 5983
Product Overview
The ALX12-7 is a 12 V 7 Ah valve-regulated lead-acid (VRLA/AGM) battery from the ALUX small-size sealed series. Its absorbed-electrolyte construction makes the battery non-spillable and installable in any position, while the sealed design removes watering and electrolyte checks for the whole service life. The 151 × 65 × 95 mm case and 2.03 weight suit compact enclosures in alarm, standby and portable equipment.
Key Features
- Non-spillable absorbed-electrolyte construction — the electrolyte is fully absorbed into the plates and separators, so the battery resists leakage and can be installed in any position
- Sealed, maintenance-free operation — no corrosive gas is produced in normal use, and no water topping-up or electrolyte specific-gravity checks are needed over the service life
- High reliability under abuse — withstands overcharge, over-discharge, vibration and shock, and every unit is 100% tested for voltage, capacity and seal integrity, with the safety valve 100% visually inspected
- Exceptional deep-discharge recovery — recovers capacity and charge acceptance even after deep or prolonged discharge
- Low self-discharge — lead-calcium grid alloy and high-purity materials keep open-circuit self-discharge below 2% per month at 20 °C (68 °F)
- Long float service life — designed float service life of 7 years at 20 °C (68 °F)
- Solid copper terminals — highest current-carrying capability in a compact case
- IEC and CE approved — designed and manufactured to IEC and CE requirements
Technical Specifications
Specification | ALX12-7 |
Battery type | VRLA (AGM) sealed lead-acid, maintenance-free |
Nominal voltage | 12 V |
Nominal capacity | 7 Ah |
Dimensions (L × W × H) | 151 × 65 × 95 mm |
Weight | 2.03 kg |
Design float service life | 7 years at 20 °C (68 °F) |
Certification | IEC, CE |
Typical Applications
- Alarm and security systems
- Emergency lighting systems
- Uninterruptible power supplies (UPS) and stand-by power
- Telecommunication equipment
- Electronic instruments and electronic cash registers
- Solar power systems
- Medical equipment
- Power tools and portable apparatus
