ALUX ALFT-24200 24V 200Ah LiFePO4 deep cycle battery
Lithium-ion / LiFePO4 Batteries

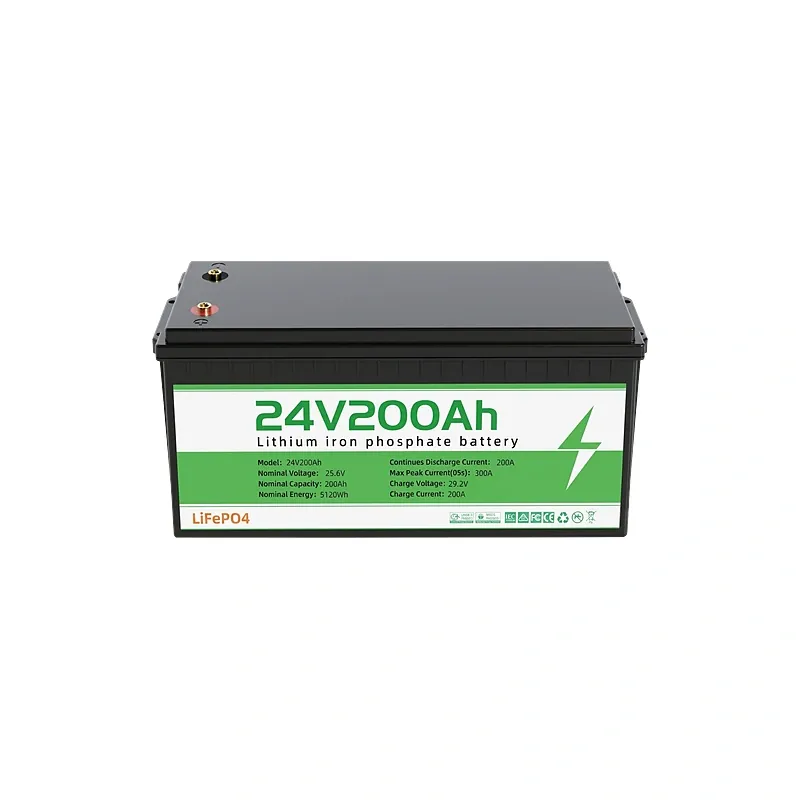

ALUX ALFT-24200 24V 200Ah LiFePO4 Deep Cycle Battery

ALUX ALFT-24200 is a 24 V (25.6 V) 200 Ah LiFePO4 deep-cycle battery storing 5,120 Wh, with 200 A continuous charge and discharge, 300 A for 10 seconds and 3,000 W of discharge power. At 520 × 269 × 220 mm and 39.5 kg it replaces a 24 V lead-acid bank in solar, RV, marine, golf cart and floor-machine applications, and is rated for at least 3,000 cycles.



Product Overview

The ALUX ALFT-24200 is a 25.6 V (24 V class) 200 Ah lithium iron phosphate battery that stores 5,120 Wh in a 520 × 269 × 220 mm case weighing 39.5 kg. It is built as a lead-acid replacement: a 24 V bank is normally two 12 V 200 Ah blocks in series, and this single pack drops into the same space with the same nominal voltage while cutting the weight to roughly a third. Continuous discharge and charge current are both 200 A, peak discharge reaches 300 A for 10 seconds, and the pack delivers up to 3,000 W, so inverters and motor loads that were sized around a lead-acid bank keep working without a change of plan. Rated cycle life is at least 3,000 cycles, and the case is IP50 with an operating window of 0 °C to 50 °C on charge and -20 °C to 60 °C on discharge.

Key Features

  • 3,000-cycle service life — the pack is rated for at least 3,000 cycles, against the 300 to 500 cycles a lead-acid block delivers before capacity falls away, so a replacement is pushed years down the line.
  • 39.5 kg for 5,120 Wh — a 24 V 200 Ah lead-acid bank of the same capacity weighs roughly three times as much, so one person can lift this pack into a cabinet, boat locker or battery box.
  • 520 × 269 × 220 mm case — the footprint is close to a pair of 12 V 200 Ah blocks, which keeps existing trays, strapping and cabling runs usable in most retrofits.
  • 200 A continuous, 300 A peak — 3,000 W of discharge power covers inverters, traction motors, hydraulic lifts and other loads that stall a smaller pack.
  • Wide operating window — charging from 0 °C to 50 °C and discharging from -20 °C to 60 °C suits cold stores, unheated garages and outdoor cabinets.
  • 8S1P cell architecture — eight 3.2 V 200 Ah cells in a single series string, so there is one balance path and fewer busbar joints to service.
  • Communication-ready — a communication function can be configured for intelligent battery management where the installation calls for monitoring.
  • Certified for export — CE, FCC, UN38.3 and MSDS documentation is available with the shipment, which keeps air and sea freight bookings straightforward.

Technical Specifications

Specification
ALFT-24200
Model
ALFT-24200
Chemistry
LiFePO4 (lithium iron phosphate)
Nominal voltage
25.6 V (24 V class)
Nominal capacity
200 Ah
Nominal energy
5,120 Wh
Cell
3.2 V 200 Ah prismatic
Cell configuration
8S1P
Charge voltage
29.2 V
Discharge cut-off voltage
20 V
Continuous charge current
200 A
Continuous discharge current
200 A
Max. discharge current (10 s)
300 A
Max. discharge power
3,000 W
Cycle life
≥ 3,000 cycles
Operating temperature (charge)
0 °C to 50 °C
Operating temperature (discharge)
-20 °C to 60 °C
IP rating
IP50
Dimensions (L × W × H)
520 × 269 × 220 mm
Weight
39.5 kg
Certificates
CE / FCC / UN38.3 / MSDS

Typical Applications

  • 24 V solar and off-grid energy storage
  • RV, campervan and caravan house banks
  • Marine house banks and 24 V trolling motors
  • Golf carts, LSVs and mobility scooters
  • Floor scrubbers and industrial cleaning machines
  • UPS, telecom and security backup power
  • Electric pallet trucks and light traction loads
  • Boat lifts, winches and remote-site power
