TÜV H1Z2Z2-K / PV1-F DC Solar Cable - High-Performance Photovoltaic Wire for Solar Energy Systems
Alux Renewable's PV1-F and H1Z2Z2-K DC solar cables are engineered for professional photovoltaic system interconnections.
Feature | Specification |
Product Type | PV1-F / H1Z2Z2-K Solar DC Cable |
Conductor Material | Stranded Tinned Copper (Class 5) |
Insulation/Sheath Material | Electron-beam cross-linked Halogen-free Polyolefin (XLPO) |
Rated Voltage | AC 0.6/1.0kV ; DC 1.5kV |
Temperature Range | -40°C to +90°C (Max. conductor temp 120°C) |

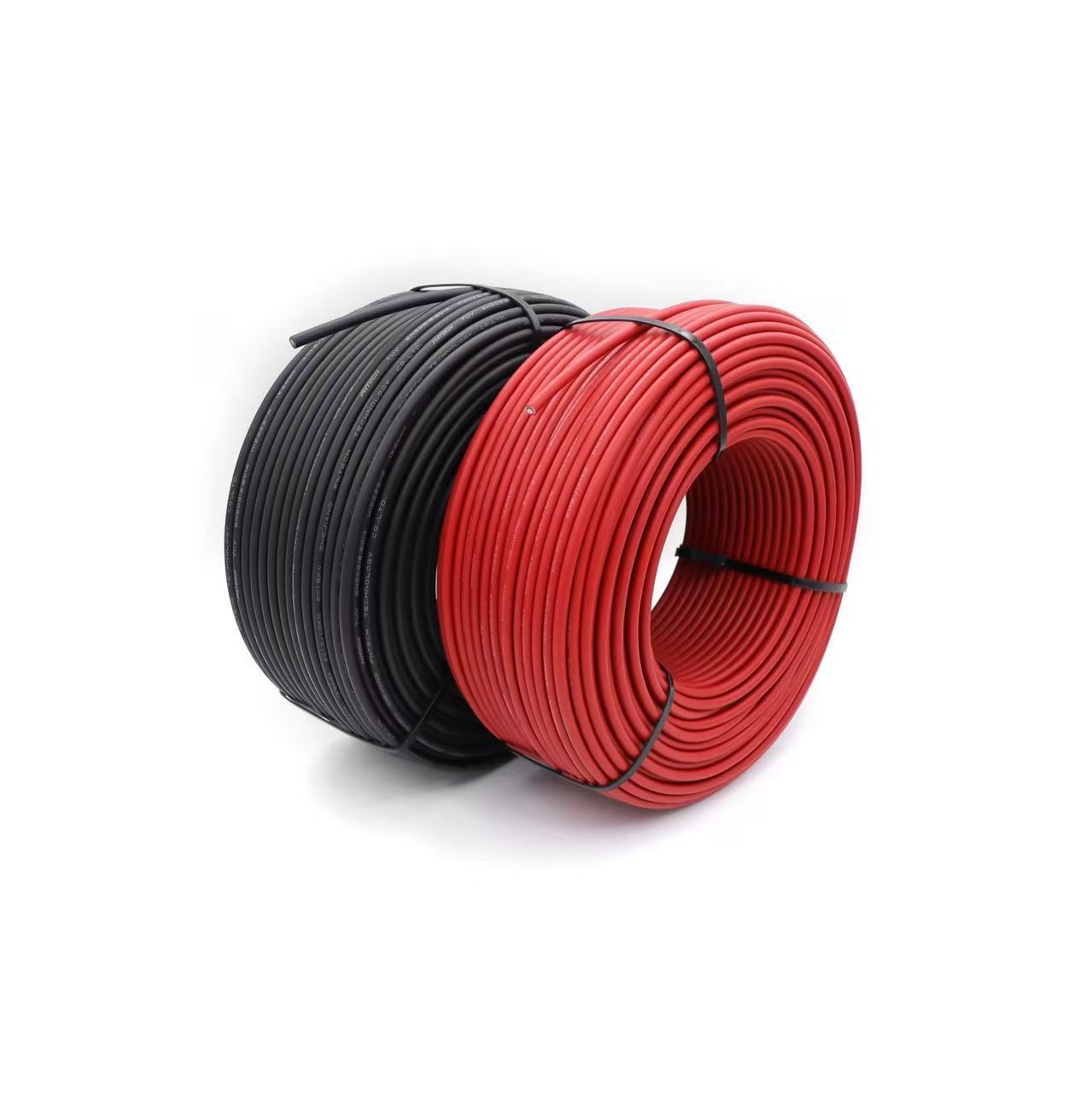

Color Options | Red, Black |
Service Life | > 25 Years |

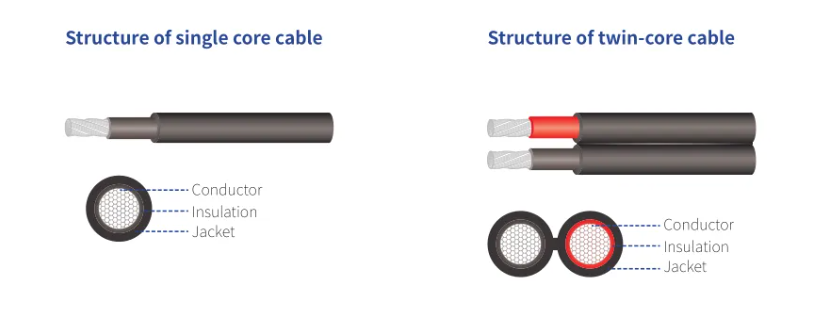

Conductor
Class 5 flexible tinned copper conductor
Insulation
Halogen-free cross-linked compound
Sheath
Halogen-free cross-linked, flame retardant compound
Sheath colour
Black
Other colours available on request
Specifications

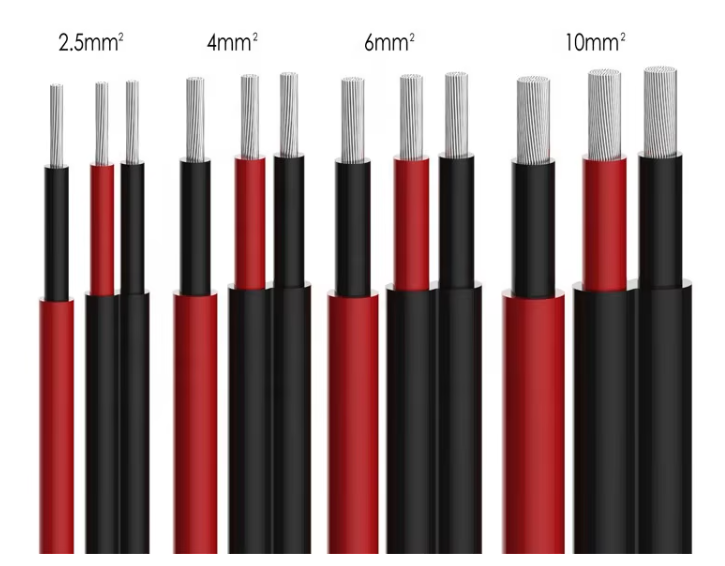

Type | Specification | Conductor Construction | Insulation thickness | Outer sheath thickness | Outer Diameter | Max. Conductor Resistance at 20°C |
mm² | N./mm | mm | mm | mm | Ω/KM | |
Single core solar pv power cable | 1x1.5 | 30/0.25 | 0.8 | 0.83 | 4.9 | 13.7 |
1x2.5 | 50/0.25 | 0.85 | 0.95 | 5.3 | 8.21 | |
1x4 | 56/0.3 | 0.75 | 0.8 | 6.1 | 5.09 | |
1x6 | 84/0.3 | 0.7 | 0.8 | 6.3 | 3.39 | |
1x10 | 142/0.3 | 0.7 | 0.8 | 7.7 | 1.95 | |
1x16 | 228/0.3 | 0.7 | 0.9 | 9.0 | 1.24 | |
1x25 | 361/0.3 | 0.9 | 1.0 | 11.2 | 0.795 | |
1x35 | 525/0.3 | 0.9 | 1.1 | 12.8 | 0.565 | |

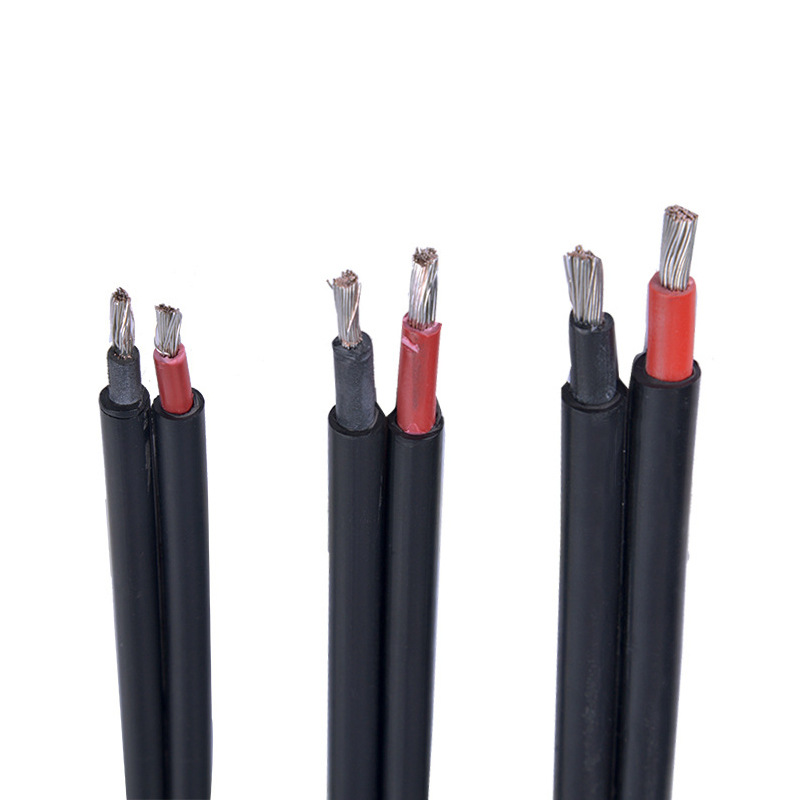

Twin/Dual core round solar pv power cable | 2x1.5 | 30/0.25 | 0.8 | 0.83 | 8.3 | 13.7 |
2x2.5 | 50/0.25 | 0.85 | 0.95 | 9.2 | 8.21 | |
2x4 | 56/0.3 | 0.75 | 0.8 | 12 | 5.09 | |
2x6 | 84/0.3 | 0.7 | 0.8 | 13.5 | 3.39 | |
2x10 | 142/0.3 | 0.7 | 0.8 | 17.6 | 1.95 | |
2x16 | 228/0.3 | 0.7 | 0.9 | 19.8 | 1.24 | |
Twin/Dual core flat solar pv power cable | 2x2.5 | 50/0.25 | 0.85 | 0.95 | 5.4x10.9 | 8.21 |
2x4 | 56/0.3 | 0.75 | 0.8 | 6.1x12.3 | 5.09 | |
2x6 | 84/0.3 | 0.7 | 0.8 | 7.2x12.9 | 3.39 |
Our high-quality DC solar cables are the lifeline of any photovoltaic system. Whether you are installing a residential rooftop array or a large-scale commercial solar farm, Alux Renewable provides reliable connectivity solutions. These cables are specifically designed to withstand extreme thermal and mechanical loads, ensuring minimal power loss over decades of operation. Compatible with standard MC4 connectors and various solar mounting systems.

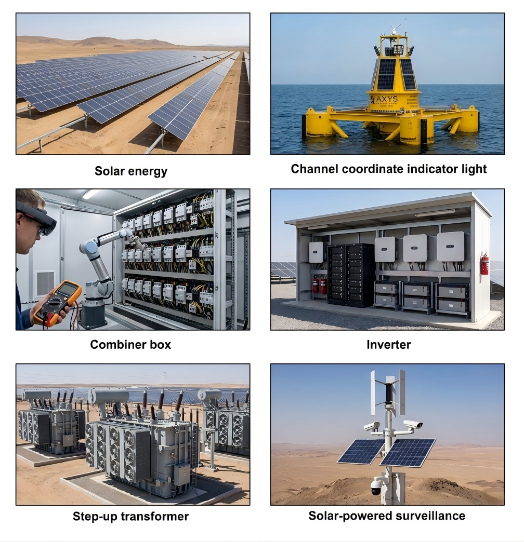

Applicantions
